Prerequisites - Windows 10

<< Click to Display Table of Contents >>

Navigation:  Installation Guide > Installing TM1Connect >

Prerequisites - Windows 10

In order to use TM1Connect on Windows 10 Operating System, Internet Information Services and Microsoft .Net 4.5 must be installed and properly configured using the following steps:

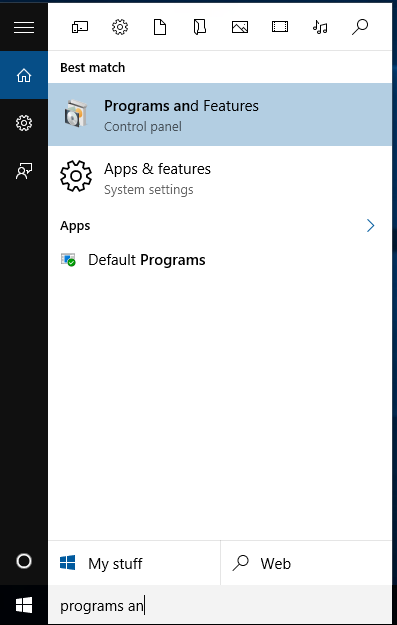

To enable IIS and Microsoft .Net Framework 4.5, first enter the Programs and Features wizard by typing Programs and Features in the windows search bar



Win10 - PreReq - Search Bar

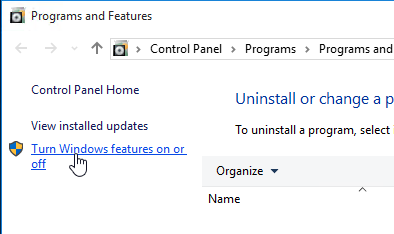

From the Programs and Features Control Panel select Turn on Windows features on or off.



Win10 - PreReq - Features

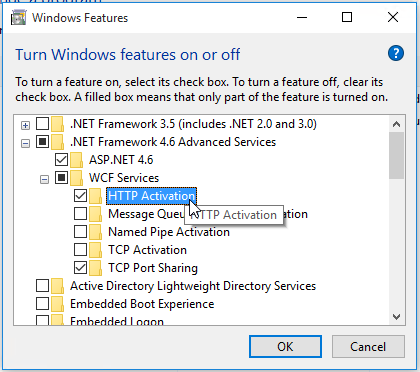

In the Windows Features dialog, locate and enable HTTP Activation within the .NET Framework 4.6 options.



Win10 - PreReq - HTTP Activation

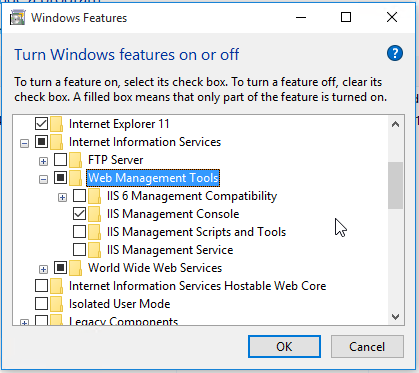

Although optional, you may wish to enable the IIS Management Console by selecting this option from the Web Management Section section.  Confirm the following options are enabled



Win10 - PreReq - IIS Management Console

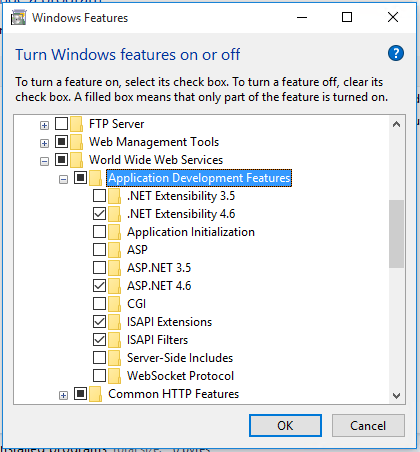

In the Application Development section, confirm the following options are enabled



Win10 - PreReq - Application Development

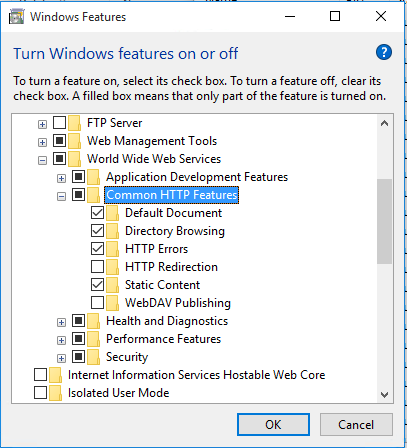

Locate the Common HTTP Features section and expand and confirm the options below are enabled



Win10 - PreReq - Common HTTP

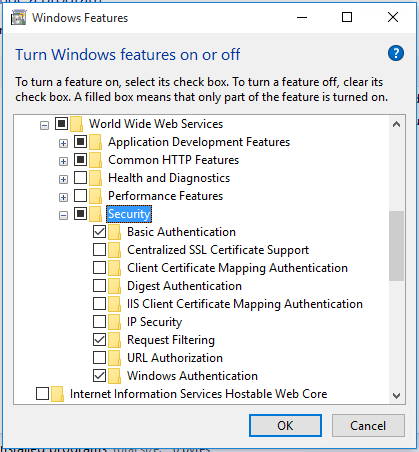

Confirm Basic Authentication and Windows Authentication within the Security settings are enabled



Win10 - PreReq - Security
